Corrosion Inhibitor for HESS

Customer

Hess Exploration & Production Malaysia B.V.

Overview

The North Malay Basin (NMB) is located offshore Peninsular Malaysia immediately south of the Malaysia-Thailand Joint Development Areas (MTJDA) (Figure 1), approximately 150 km North East from Kota Bharu, in 55 to 60 m water depth. The NMB area consists of Blocks PM-302 and PM-325. Hess Exploration & Production Malaysia B.V (HESS) and PETRONAS Carigali Sdn Bhd (PCSB) are contractors to PETRONAS for the Production Sharing Contracts (PSCs) and have executed a Joint Operating Agreement (JOA) between them. Pursuant to the JOA, HESS and PCSB each hold 50% participating interest for the Blocks and HESS has been appointed the Operator for the Blocks. The development projects are located within Block PM-302.

Phase 4A development includes the remote wellhead platforms in the Dahlia, Kangsar and Teratai fields, and the production to be transported to Bergading CPP via a trunk-line, targeted in Q3 2022.

List of Project(s)

Customer	Hess Exploration & Production Malaysia B.V.
Industry	Oil and Gas
Projects	Chemical Injection Skid
Location	North Malay Basin Phase 4A Facilities Contract
Medium	Corrosion Inhibitor
Brand	Milton Roy

Scape of Supply

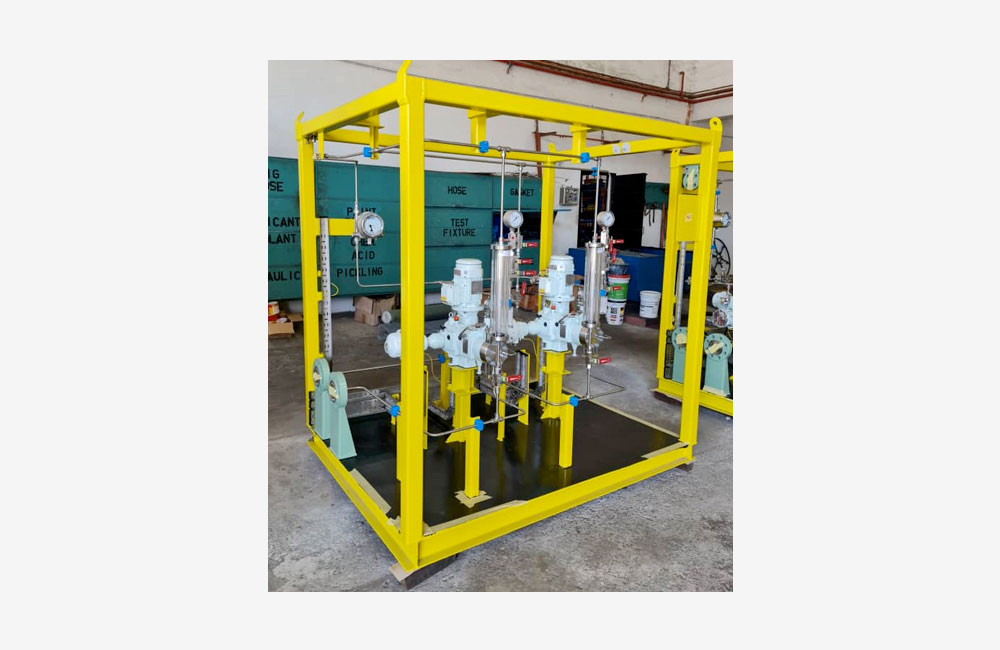

The corrosion inhibitor chemical injection skid is composed of Milton Roy API 675 Chemical Injection Pump with an Actuator Capacity Controller (ACC), AC electric motor, pulsation dampeners, rotameter, API valves, instrument valves, pressure safety valves, tubing, piping and a 6.6 m3 SS316L tank all installed on a carbon steel baseplate.

Skid: WKGA

Customer	Hess Exploration & Production Malaysia B.V.
Industry	Oil and Gas
Projects	Chemical Injection Skid
Location	North Malay Basin Phase 4A Facilities Contract
Medium	Pour Point Depressant
Brand	Milton Roy

Scope of Supply

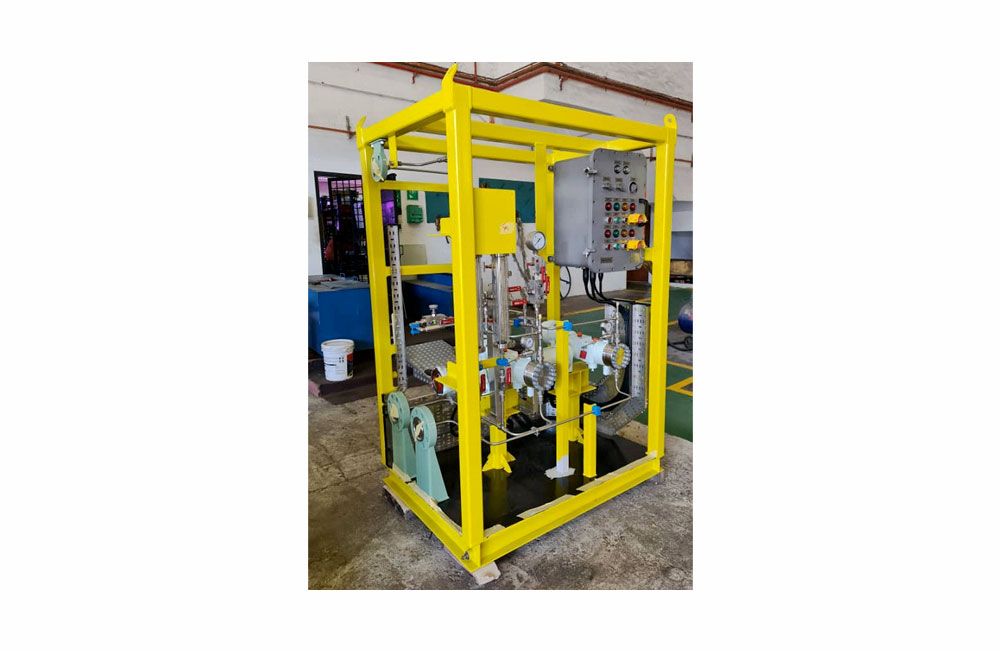

The pour poit depressant chemical injection skid is composed of Milton Roy API 675 Chemical Injection Pumps with an Actuator Capacity Controller (ACC), AC & DC electric motor, pulsation dampeners, rotameter, instrument valves, pressure safety valves, tubing and local control panel (LCP), all installed on a carbon steel lifting frame baseplate.

Skid WKGA

Skid WTRC

Skid WDLA

Customer	Hess Exploration & Production Malaysia B.V.
Industry	Oil and Gas
Projects	Chemical Injection Skid
Location	North Malay Basin Phase 4A Facilities Contract
Medium	Methanol
Brand	Milton Roy

Scope of Supply

The portable methanol injection skid is composed of Milton Roy API 675 Chemical Injection Pump, AC electric motor, pulsation dampeners, rotameter, API valves, pressure safety valves, pressure switches, SS316L piping and local control panel (LCP), all installed on a DNVGL certified carbon steel lifting frame baseplate. The 2m3 SS316L tote tank is supplied separately in a lifting frame.
