Lawit A Platform for Exxon Mobil

Customer

Exxon Mobil Exploration & Production Malaysia Inc

Overview

ExxonMobil is one of the major crude oil producers and suppliers of natural gas in Malaysia. It operates under four production sharing contracts (PSCs) with the Malaysian national oil company, PETRONAS, producing about one-fifth of the nation’s oil production and about one-half of natural gas supplies to Peninsular Malaysia.

Lawit A platform is the largest fixed platform built by Esso Malaysia, eclipsing the company's Jerneh A production platform, the largest in Southeast Asia.

Lawit's complex is comprised of the A Platform for production operations, an adjacent riser platform, and a remote gas flare. Production platform facilities are including the five production modules, living quarters for 122 workers, and a helicopter pad. The riser platform is to consist of a three tiered, integrated deck to house pipeline risers.

Lawit's development plan includes a 30” gas pipeline to shore, which is tied in to the existing onshore receiving facilities with the production started in 1997.

List of Project(s)

Lawit A Platform

Customer	Exxon Mobil Exploration & Production Malaysia Inc
Industry	Oil and Gas
Projects	Sampling System Revamp (2012)
Location	Malaysia
Medium	Liquid Condensate

Project Description

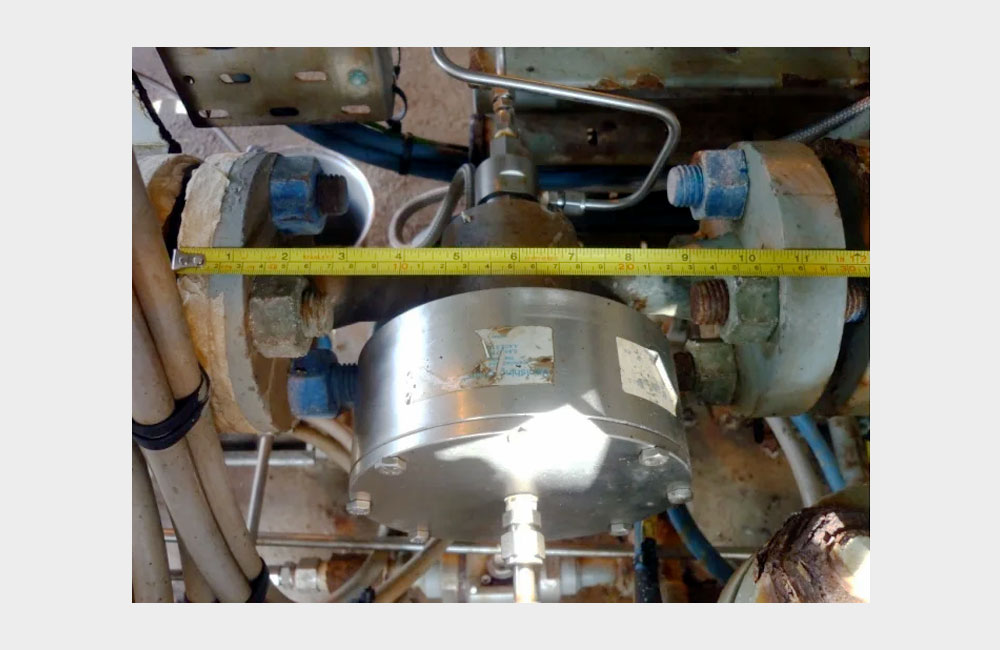

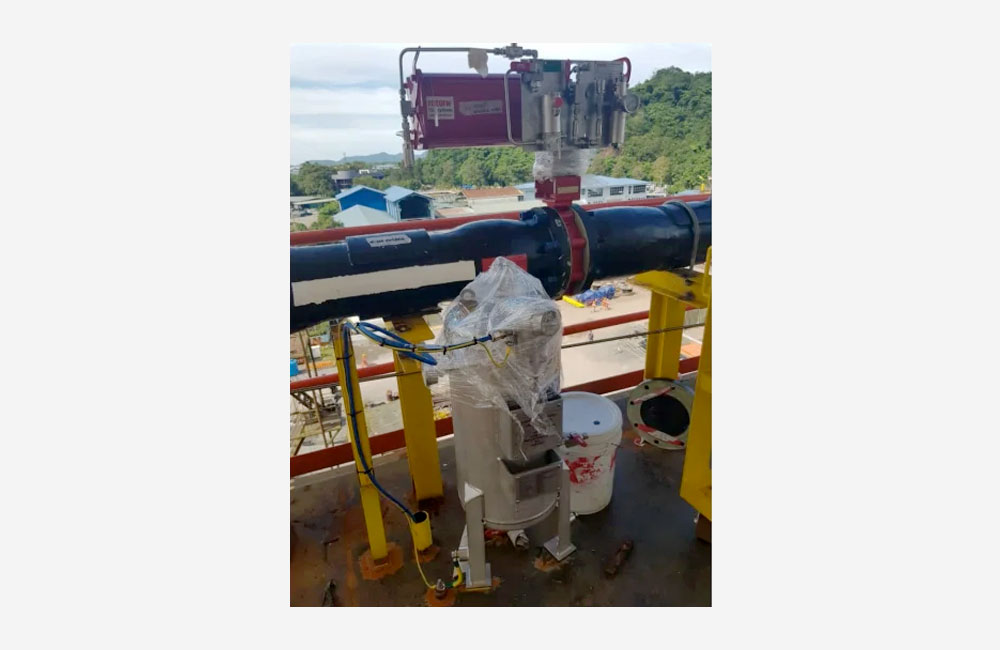

Lawit A Metering process condition is one of the toughest process conditions for any sampling system to cope with. The line pressure fluctuating from 3,000kpa to 13,000kpa and sand content is significantly high. Thus the existing sampling brand is failing to meet the required result. In year 2012, Exxon Mobil Exploration & Production Malaysia Inc (EMEPMI) has decided to replace the existing system with other alternative.

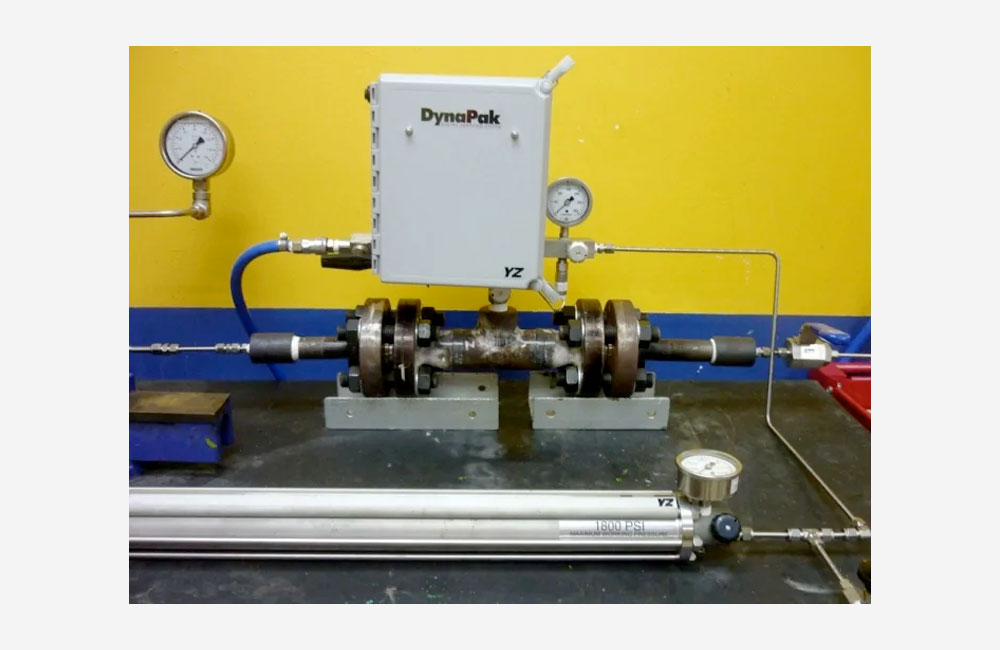

SESB has taken an initiative to simulate the process condition at YZ Training and Research Center located in Kuala Lumpur and has been witnessed by EMEPMI personnel. Convinced by the result, they agreed to proceed with the installation in Lawit A Platform.

Scope of Work

YZ model DynaPak 3010N featuring:

Z-65/6.1 Controller Featuring:

Up to two year battery life
Completely potted electronic circuitry
Onboard six-digit LCD counter
Diagnostic test functions
Locally mounted wiring assembly
Straight time-based, time-based with on/off low flow, or proportional-to-flow sampling
FM approved, and CSA certified intrinsically safe for Class I, Division 1, Group C, D; and Cenelec certified intrinsically safe for EExia IIB T4
