LMV 806 Direct Drive Pump
Safe, reliable and economical the Sundyne API 610, OH3 or OH5, Direct Drive Pump
The Sundyne LMV-806 is an API 610 direct drive centrifugal pump in a standard OH5 configuration or OH3 when used with the bearing frame option. It is also available in the ISO-13709 standard. It is part of Sundyne’s line of direct drive pumps. It fills a gap in the Direct Drive product family by extending the performance envelope to address higher ranges
These vertical inline overhung impeller general service pumps have been deployed by process and rotating equipment engineers for industrial applications in the hydrocarbon, refining, petrochemical, chemical production, oil and gas production, offshore and specialty processing industries. Sundyne pumps are renowned for high suction pressure and a wide range in operating temperatures.

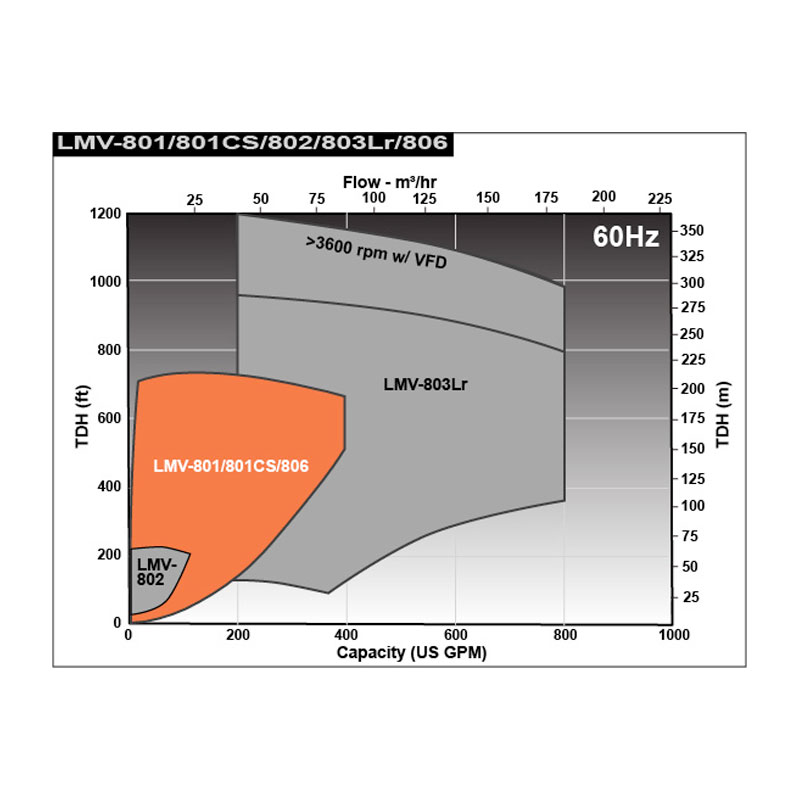

- Flows to 380 gpm (86 m³/hr)
- Heads to 760 ft (232 m)
- Suction Pressure 557 psi (39 bar)
- Temperature Range -40 to 350°F (-40 to 175°C)
The vertical configuration of the direct drive line of Sundyne pumps are specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.
Applications
- Feed pumps
- Booster pumps
- Bottoms pumps
- Wash water pumps
- Reflux pumps
- Condensate pumps
US 60 Hz
| Item | Details |
|---|---|
| Heads to | 760 ft |
| Flows to | 380 gpm |
| Standards | API 610 OH3 and 5 |
| Maximum Motor Power | 75 HP |
| Temperature Range | -40 to 350°F |
| Maximum Allowable Working Pressure | 710 psi |
| Maximum Suction Pressure | 557 psi |
| Maximum Viscosity | 750 cP |
| Solids Range | 0.015″ |
| Mounting Configuration | Vertical |
| Seal Configurations | Single, Double, Tandem |
| Available Inducer | Yes |
| Available Flanges | 300# ANSI RF |
| Suction and Discharge Size | 3″ x 2″ |
| API Plans | 11, 13, 14, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62 |
Metric 50 Hz
| Item | Details |
|---|---|
| Heads to | 232 m |
| Flows to | 86 m3/hr |
| Standards | API 610 |
| Maximum Motor Power | 55 kW |
| Temperature Range | -40 to 175°C |
| Maximum Allowable Working Pressure | 100 bar |
| Maximum Suction Pressure | 50 bar |
| Maximum Viscosity | 750 cP |
| Solids Range | 400 microns |
| Mounting Configuration | Vertical |
| Seal Configurations | Single, Double, Tandem |
| Available Inducer | Yes |
| Available Flanges | 300# ANSI RF |
| Suction and Discharge Size | 3″ x 2″ |
| API Plans | 11, 13, 14, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62 |
Proven to be reliable, safe, compact and efficient, Sundyne LMV 806 pumps provide a number of operational benefits:
- Single stage, vertical in-line overhung pump according to ISO 13709/API 610 OH3 design recommendations with separate bearing housing and OH5 rigidly coupled
- Maximized up time
- Saves space-25% the size of competing horizontal pumps
- ATEX certified
- Continuous operations for 5 years with no overhaul
- Barske impeller low NPSH technology
