LMV 803Lr Ultra-Low NPSHr Direct Drive Pump
The Ultra-Low NPSHr Sundyne API 610 OH3, API 682, ISO 13709, ASME Certified Direct Drive Pump

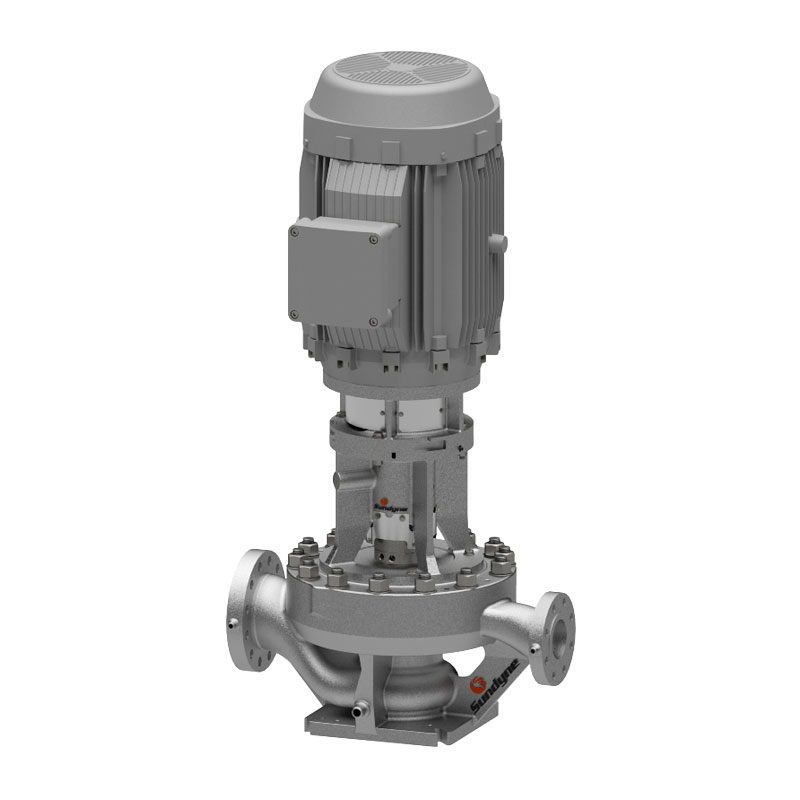

Sundyne engineers have decades of impeller and inducer design experience. They leveraged that experience and analysis to develop a heavy duty vertical inline centrifugal pump with NPSHr performance that is unparalleled in oil and gas production, midstream and hydrocarbon processing industries. The LMV-803Lr is capable of running ultra-low NPSHr <10 ft (3 m) up and down the curve without losing performance. The LMV-803Lr is Sundyne’s most robust direct drive pump to date. A rugged 6×4 casing allows for higher pressures and higher flows. The pump features new inducer technology and a backswept impeller that eliminates low-inlet pressure cavitation.
- Flows to 800 gpm (244 m³/hr)
- Heads to 1,030 ft (314 m)
- Suction Pressure 400 psi (28 bar)
- Temperature Range -200 to 400°F (-129 to 204°C)
Lower Installed Cost
Because the LMV-803Lr has such a low NPSHr rating, it may be installed at grade level eliminating the need of a sump pit. This also greatly reduces the required skirt height of an elevated tower significantly reducing typical installed costs.
In addition, the vertical configuration of the direct drive line of Sundyne pumps are specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.
Applications
- Bubble point applications (Anes/Enes)
- Feed pumps
- Fractionation pumps
- Booster pumps
- Bottoms pumps
- Liquefaction
- Wash water pumps
- Reflux pumps
- Condensate pumps
US 60 Hz
| Item | Details |
|---|---|
| Heads to | 1,030 ft |
| Flows to | 800 gpm |
| Minimum NPSH | <10 ft |
| Standards | API 610 OH3, ISO 13079, ASME |
| Maximum Motor Power | 400 HP |
| Temperature Range | -200 to 400°F |
| Maximum Allowable Working Pressure | 1,000 psig |
| Maximum Suction Pressure | 400 psig |
| Maximum Viscosity | 750 cP |
| Solids Range | 0.015″ |
| Mounting Configuration | Vertical |
| Seal Configurations | Single, Double, Tandem-API 682 Cartridge |
| Available Inducer | Standard |
| Available Flanges | 600# ANSI RF |
| Suction and Discharge Size | 6″ x 4″ |
| API Plans | 11, 13, 14, 21, 31, 41, 52, 53, 54 |
Metric 50 Hz
| Item | Details |
|---|---|
| Heads to | 314 m |
| Flows to | 182 m3/hr |
| Minimum NPSH | <3 m |
| Standards | API 610 OH3, ISO 13709, ASME |
| Maximum Motor Power | 298 kW |
| Temperature Range | -129 to 204°C |
| Maximum Allowable Working Pressure | 69 bar |
| Maximum Suction Pressure | 28 bar |
| Maximum Viscosity | 750 cP |
| Solids Range | 400 microns |
| Mounting Configuration | Vertical |
| Seal Configurations | Single, Double, Tandem-API 682 Cartridge |
| Available Inducer | Standard |
| Available Flanges | 600# ANSI RF |
| Suction and Discharge Size | 6″ x 4″ |
| API Plans | 11, 13, 14, 21, 31, 41, 52, 53, 54 |
Proven to be reliable, safe, compact and efficient, Sundyne LMV 803Lr pumps provide a number of operational benefits:
- Ultra-low NPSHr, <10 ft. (3m) eliminates the need and expense of pump installation in a pit
- Ultra-low NPSHr significantly reduces the required skirt height of elevated towers

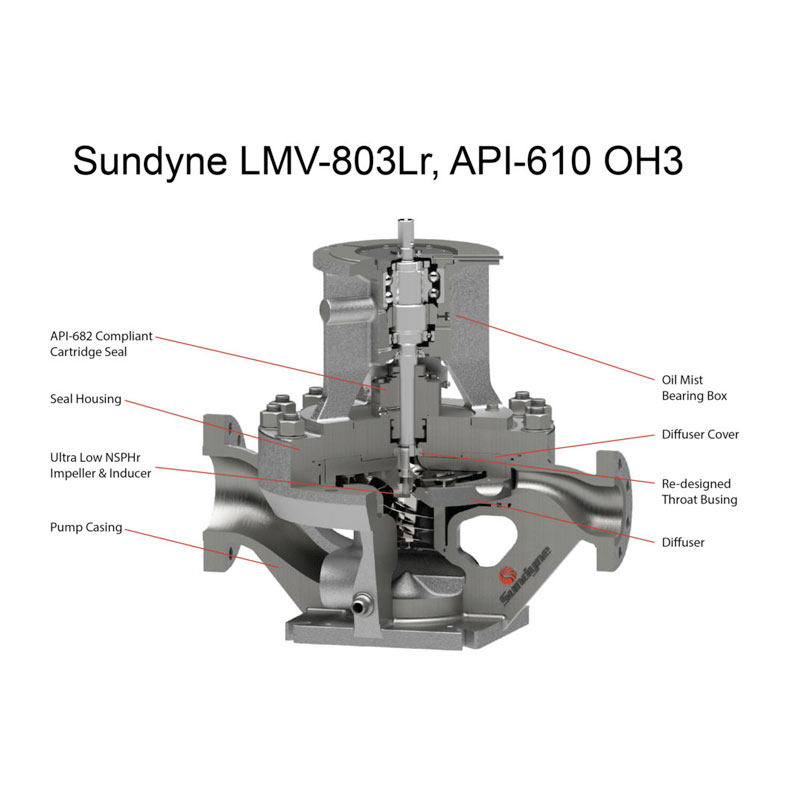

- Single stage, vertical in-line overhung pump compliant with ISO 13709/API 610 OH3/ASME design
- Enhanced throat bushing improves seal performance for light hydrocarbon applications
- Oil mist bearing box design
- Updated cryogenic design for NGL recovery, ethane, and LNG production & storage
- Can be installed at grade level greatly simplifying maintenance compared to BB & VS pumps
- Smaller hydraulic package meets a wider range of process parameters
- Saves space-25% smaller footprint of competing horizontal pumps
- API 682 cartridge seal
- Continuous operation for 5 years with no overhaul
- Proven inducer technology and backswept impeller eliminates low-inlet pressure cavitation.
