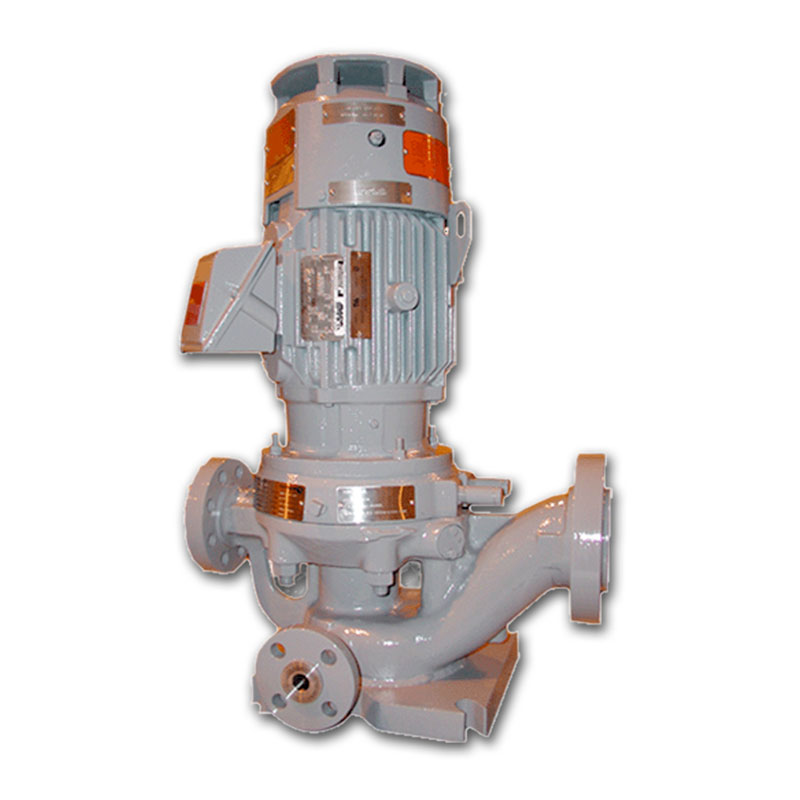

LMV 802 Direct Drive Pump
The Sundyne LMV-802 is an API 610 direct drive centrifugal pump in a standard OH5 configuration or OH3 when used with the bearing frame optionThe LMV-802 is part of Sundyne’s line of direct drive pumps. It extends the performance envelope to address lower ranges then the larger LMV 801.
- Flows to 150 gpm (34 m³/hr)
- Heads to 210 ft (64 m)
- Suction Pressure 600 psi (41 bar)
- Temperature Range -200 to 650°F (-130 to 340°C)
The vertical configuration of the direct drive line of Sundyne pumps are specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.
Applications
- Feed pumps
- Booster pumps
- Bottoms pumps
- Wash water pumps
- Reflux pumps
- Condensate pumps
Specifications
US 60 Hz
| Item | Details |
|---|---|
| Heads to | 210 ft |
| Flows to | 150 gpm |
| Standards | API 610 OH3 and OH5 |
| Maximum Motor Power | 50 HP |
| Temperature Range | -200 to 650°F |
| Maximum Allowable Working Pressure | 1,440 psi |
| Maximum Suction Pressure | 210 psi |
| Maximum Viscosity | 750 cP |
| Solids Range | 0.015″ |
| Mounting Configuration | Vertical |
| Seal Configurations | Single, Double, Tandem |
| Available Inducer | Yes |
| Available Flanges | 300#, 600#, 900# ANSI RF |
| Suction and Discharge Size | 3″ x 2″ |
| API Plans | 11, 13, 14, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62 |
Metric 50 Hz
| Item | Details |
|---|---|
| Heads to | 45 m |
| Flows to | 27 m3/hr |
| Standards | API 610, OH3 and OH5 |
| Maximum Motor Power | 37 kW |
| Temperature Range | -130 to 340°C |
| Maximum Allowable Working Pressure | 100 bar |
| Maximum Suction Pressure | 15 bar |
| Maximum Viscosity | 750 cP |
| Solids Range | 400 microns |
| Mounting Configuration | Vertical |
| Seal Configurations | Single, Double, Tandem |
| Available Inducer | Yes |
| Available Flanges | 300#, 600#, 900# ANSI RF |
| Suction and Discharge Size | 3″ x 2″ |
| API Plans | 11, 13, 14, 21, 23, 31, 32, 41, 52, 53, 54, 61, 62 |
Features
Proven to be reliable, safe, compact and efficient, Sundyne LMV 802 pumps provide a number of operational benefits:

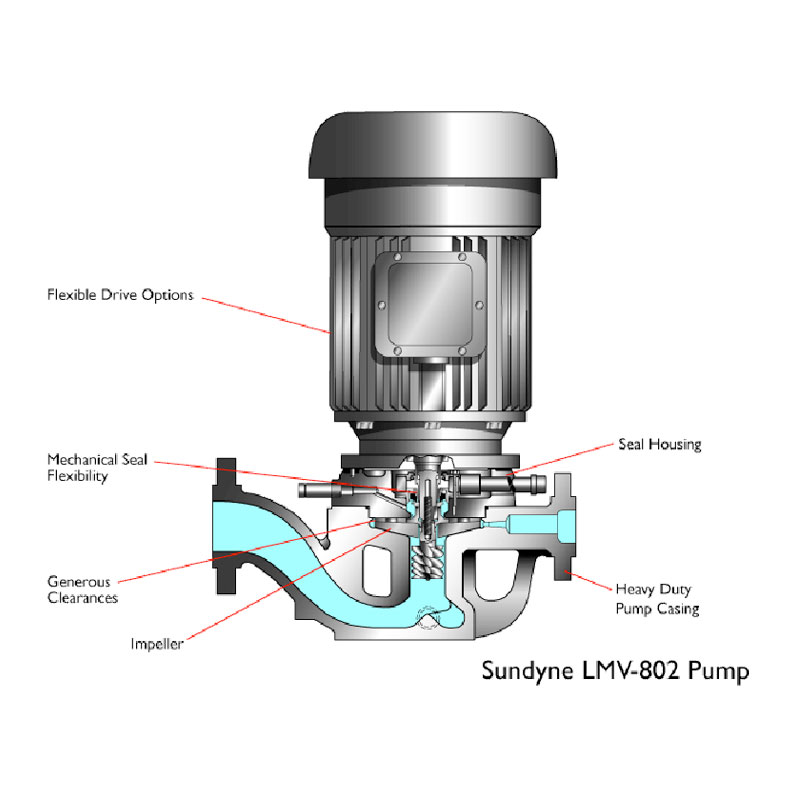

- Single stage, vertical in-line overhung pump according to ISO 13709/API 610 OH3 design recommendations with separate bearing housing and OH5 rigidly coupled
- Maximized up time
- Saves space-25% the size of competing horizontal pumps
- ATEX certified
- Continuous operations for 5 years with no overhaul
- Barske impeller low NPSH technology
