Straight Through

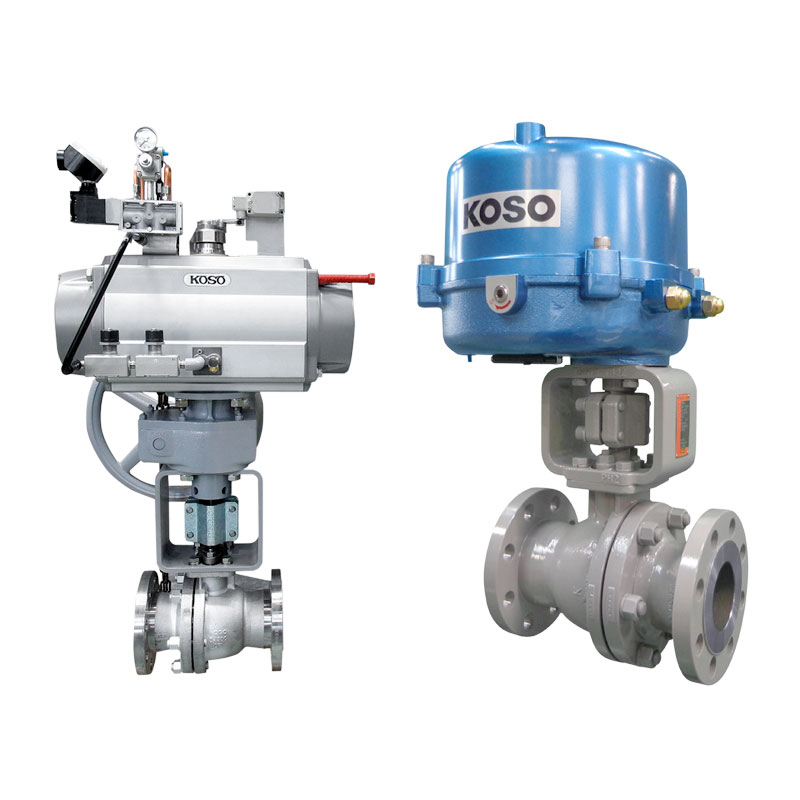

This series provides ball valves with a special inner valve which can be full opened or closed by simply causing the stem to make a 1/4 turn
The offtake from a ball valve, when totally opened,has the same bore as the pipeline and it’s fluid resistance is negligible. For this reason, this atuomatic valve is best suited to on-off service, controlling various types of liquid, gas and slurry.
Specifications
| Col1 | Col2 | Col3 | |
|---|---|---|---|
| Body type | 301K | 332K | |
| Full bore size | 1/2"(15A) to 16"(400A) | 1/2"(15A) to 8"(200A) | |
| Reduced bore size | 4" × 3" to 18" × 16" | - | |
| Jacketted valve size | 11/2" × 1/2" × 1/2" to 10" × 8" × 6" | - | |
| Body rating | ANSI Class 150 to 300, JIS 10K to 40K | #colspan# | |
| Fluid temperature | -45 to +250° | -20 to +230° | |
| Connections | Flanged (RF) | #colspan# | |
| Body materials | SCPH2/WCB, SCS13A/CF8, SCS14A/CF8M. etc. | SCPH2/WCB, SCS14A/CF8M | |
| Ball materials | SUS316/Buffing, SCS13A/Buffing, SCS14A/Buffing | SUS316/Buffing, SCS14A/Buffing | |
| Seal ring materials | Pure Teflon, Reinforced Teflon | #colspan# | |
| Seat Leakage | Tight shut off | #colspan# | |
| Actuator combination | 6300RB, 6500RA, 7300RA: Pneumatic Cylinder Actuator 3200RA, 3300RA, 3400RB: Electric Motor Actuator | #colspan# | |
