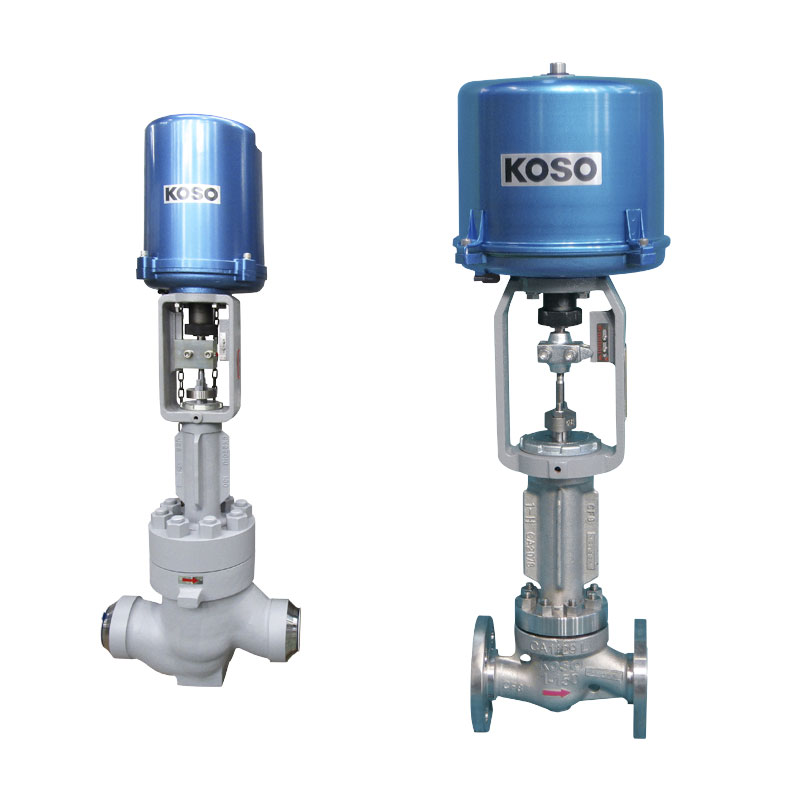

Solid State Electronic Actuators
Each product of this series drives and controls a control valve, with a motor driven by a full-electronic controller
Each product of this series drives and controls a control valve, with a motor driven by a full-electronic controller upon receipt of a signal (4 to 20 m ADC) from the controller. A product of 3500 series, which is of high-end type, executes critical control by means of a brushless DC servo, a product of 3600 series or 3620 series providing superior cost performance executes control by an AC reversible motor. Furthermore, a product of 3620 series, which is of motor built-in type, provides excellent heat radiation effect. In addition, explosion-proofing approved models are also replete. See here for models and details of specification.
Specifications
| Col1 | Col2 | Col3 | |
|---|---|---|---|
| Principal uses | #colspan# | Control | |
| Power | Drive motor | Brushless DC motor | |
| Power | Power supply | Single phase 100V AC 50/60Hz | |
| Power | Power supply Optional | Single phase 110/200/220V AC 50/60Hz | |
| Power | Motor rating | Continuous | |
| Control mechanism | Input signal | 4 to 20mA DC | |
| Control mechanism | Input signal Optional | 1 to 5V DC/4 to 12mA DC/12 to 20mA DC | |
| Control mechanism | Opening signal transmission Optional | 4 to 20mA DC with zero and span adjustment | |
| Control mechanism | Resolution | 0.3% (3/1000) | |
| Control mechanism | Resolution Optional | 0.1% (1/1000) | |
| Control mechanism | Zero adjust range | +/-12.5% | |
| Control mechanism | Span adjust range | 5 to 100% | |
| Ancillary mechanism | Manual operation mechanism | Dismountable handle type | |
| Ancillary mechanism | Sequence output signal | Output shaft clockwise turned position (3500R) Output shaft lowered position (3500L) | |
| Ancillary mechanism | Sequence output signal Optional | Output shaft counterclockwise turned position (3500R) Output shaft elevated position (3500L) | |
| Ancillary mechanism | Overload protection | With built-in overload protector | |
| Ancillary mechanism | Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |
| Operation | Space heater - Optional | Either forward operation or reverse operation can be selected | |
| Conditions for installation | Ambient temperature | -10 to 50° | |
| Conditions for installation | Ambient temperature - With space heater | -20 to 40° | |
| Conditions for installation | Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
| Body portion | External sheath type | Protection class IP55 or equivalent | |
| Body portion | Wiring port | G1/2 (1 place) | |
| Body portion | Wiring port - Optional | Various adaptors can be mounted | |
| Body portion | Installation seat | Conforms to ISO | |
3500R Rotary stem motion type/3500L Linear stem motion type
| Col1 | Col2 | Col3 | |
|---|---|---|---|
| Principal uses | #colspan# | Control | |
| Power | Drive motor | AC reversible motor | |
| Power | Power supply | Single phase 100V AC 50/60Hz | |
| Power | Power supply Optional | Single phase 110/200/220V AC 50/60Hz | |
| Power | Motor rating | 30 minutes | |
| Control mechanism | Input signal | 4 to 20mA DC or 1 to 5V DC | |
| Control mechanism | Opening signal transmission | 4 to 20mA DC | |
| Control mechanism | Resolution | 0.8 to 1.0% (1/125 to 1/100) | |
| Control mechanism | Resolution Optional | 0.4% (1/250) | |
| Control mechanism | Zero adjust range | +/-25% | |
| Control mechanism | Span adjust range | 20 to 100% | |
| Control mechanism | Operation | Either forward operation or reverse operation can be selected | |
| Ancillary mechanism | Control position detection Optional | Auxiliary limit switch (voltfree), maximum points of detection 2 places (3600R) | |
| Ancillary mechanism | Manual operation mechanism | Dismountable handle type | |
| Ancillary mechanism | Overload protection | With built-in thermal protector | |
| Ancillary mechanism | Overload protection Optional | Overload unit, Torque switch on closed side (CW direction only, 3600R) | |
| Ancillary mechanism | Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |
| Conditions for installation | Ambient temperature | -10 to 50° | |
| Conditions for installation | Ambient temperature - With space heater | -20 to 40° | |
| Conditions for installation | Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
| Body portion | External sheath type | Protection class IP55 or equivalent | |
| Body portion | Wiring port | G3/4 (3600R) G1/2 (3600L) 2 places | |
| Body portion | Wiring port - Optional | Various adaptors can be mounted, Terminal box (3600L) | |
| Body portion | Installation seat | Conforms to ISO | |
3600R Rotary stem motion type/3600L Linear stem motion type
| Col1 | Col2 | Col3 | |
|---|---|---|---|
| Principal uses | #colspan# | Control | |
| Power | Drive motor | AC reversible motor | |
| Power | Power supply | Single phase AC100/110V 50/60Hz (+/-5%) | |
| Power | Power supply Optional | Single phase AC200/220V 50/60Hz (+/-5%) | |
| Power | Motor rating | 30 minutes | |
| Control mechanism | Input signal | 4 to 20mA DC or 1 to 5V DC | |
| Control mechanism | Opening signal transmission | 4 to 20mA DC | |
| Control mechanism | Resolution | 0.5 to 1.0% (1/200 to 1/100) | |
| Control mechanism | Resolution Optional | 0.3% (1/300) | |
| Control mechanism | Zero adjust range | +/-25% | |
| Control mechanism | Span adjust range | 20 to 100% | |
| Control mechanism | Operation | Either forward operation or reverse operation can be selected | |
| Control mechanism | Save function | ON/OFF selection by select switch | |
| Ancillary mechanism | Control position detection Optional | Auxiliary limit switch (voltfree), maximum points of detection 2 places | |
| Ancillary mechanism | Manual operation mechanism | With handle insertion hole | |
| Ancillary mechanism | Overload protection | With built-in thermal protector, Torque switch (3620R is an option) | |
| Ancillary mechanism | Space heater Optional | * Please contact us for details, as this matter depends on the power supply voltage. | |
| Conditions for installation | Ambient temperature | -10 to 50° | |
| Conditions for installation | Ambient temperature - With space heater | -20 to 40° | |
| Conditions for installation | Mounting position | Should not be mounted in an inverted position from the maintenance face. | |
| Body portion | External sheath type | Protection class IP55 or equivalent | |
| Body portion | Wiring port | G1/2 (2 places) | |
| Body portion | Wiring port - Optional | Various adaptors can be mounted, Terminal box | |
| Body portion | Installation seat | Conforms to ISO | |
