Pneumatic Cylinder Actuators

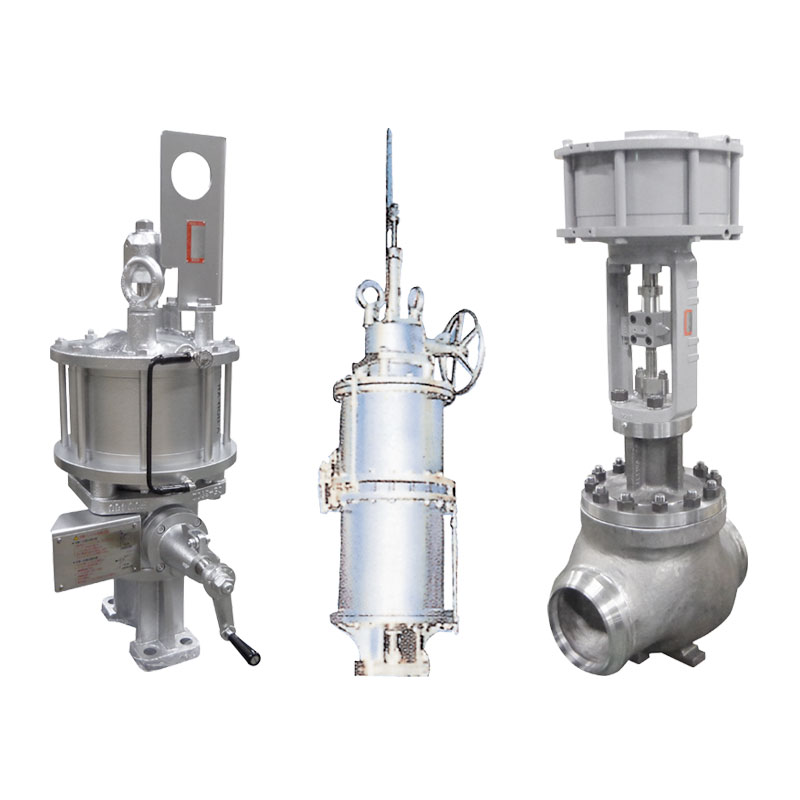

6100LA 6200LA 6300LA
6100LA
1 Piston type
Valve stem and actuator output shaft connection is inside the cylinder.
6200LA
2 Piston type
Valve stem and actuator output shaft connection is inside the cylinder.
6300LA
1 Piston type
Valve stem and actuator output shaft connection is outside the cylinder (in Yoke).
Specifications
| Col1 | Col2 | Col3 | Col4 | Col5 | Col6 | Col7 | Col8 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type code | Double Acting type | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | ||||||
| Type code | 6110LA | 6116LA | 6128LA | 6136LA | 6141LA | 6154LA | 6254LA | ||||||
| Size | 100 | 160 | 280 | 360 | 415 | 540 | 540x2 | ||||||
| Output N at 500KPa | 3430 | 9310 | 29890 | 45570 | 62220 | 106820 | 213640 | ||||||
| Max. stroke (mm) | 60 | 210 | 310 | 610 | 810 | 810 | 1360 | ||||||
| Air supply | Double Acting: 300 to 500kPa, Spring Return: 500kPa | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | ||||||
| Action | Direct Action or Reverse Action | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | ||||||
| Environment temp. | Standard type: -20 to +60°, Low temp.service:-50 to +60°, High Temp.service: 0 to +100° | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | ||||||
| Options | Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller etc. | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | ||||||
| Col1 | Col2 | Col3 | Col4 | Col5 | Col6 | Col7 | Col8 | Col9 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type code | Double Acting type | #colspan# | #colspan# | #colspan# | #colspan# | Spring Return type | #colspan# | #colspan# | |||||||
| Type code | 6315LA | 6320LA | 6330LA | 6345LA | 6360LA | 6330LA | 6345LA | 6360LA | |||||||
| Size | 150 | 200 | 300 | 450 | 600 | 300 | 450 | 600 | |||||||
| Output N at 500KPa | 7938 | 14308 | 32242 | 73010 | 129850 | 7644 | 17248 | 30576 | |||||||
| Max. stroke (mm) | 210 | 210 | 210 | 410 | 410 | 210 | 210 | 210 | |||||||
| Air supply | Double Acting: 300 to 500kPa, Spring Return: 500kPa | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | |||||||
| Action | Direct Action or Reverse Action | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | |||||||
| Environment temp. | Standard type: -20 to +60°, Low temp.service:-50 to +60°, High Temp.service: 0 to +100° | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | |||||||
| Options | Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller etc. | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | #colspan# | |||||||
