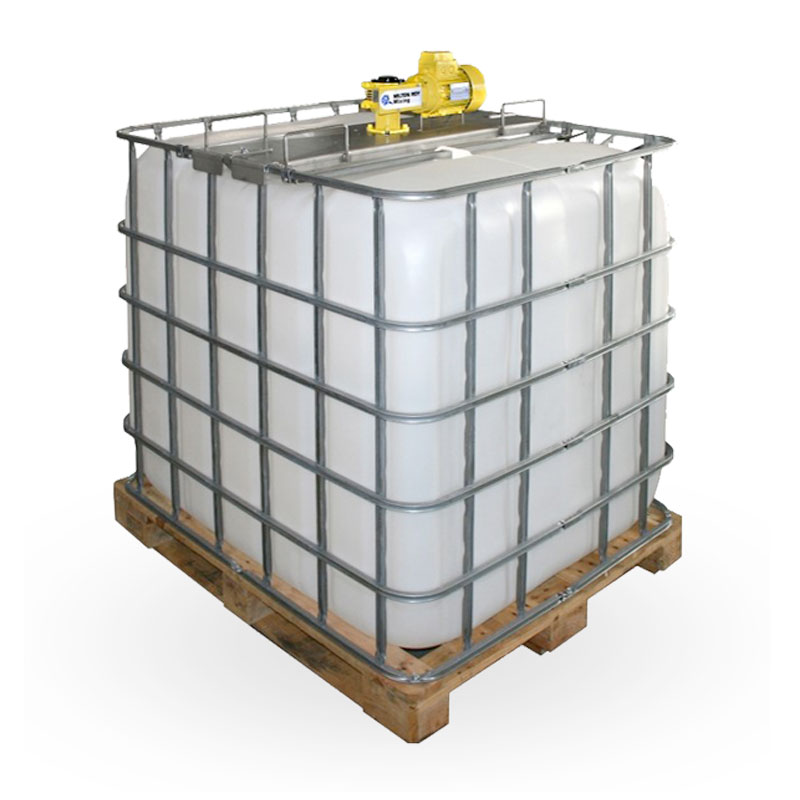

Helimix® Folding Blade Mixer (IBC)
Simple and Efficient Design for Intermediate Bulk Containers Mixing
The Helimix folding blade agitator has been specifically designed to overcome the constraints of intermediate bulk containers (IBCs). Products within the IBC must be regularly mixed to prevent separation, but the short processing times and a narrow opening pose installation and removal challenges for standard agitators.
The Helimix mixer’s rotating blades fold to a slim 70 mm when closed, allowing easy insertion, and then opens to 230 mm to get to all four corners of the container.
| Type | ER1 Low speed | PR1 Low speed | ED1 High speed | ED2 High speed |
|---|---|---|---|---|
| IBC Capacity (l/gal). | 1000/264.2 | 1000/264.2 | 1000/264.2 | 1000/264.2 |
| Speed (rpm) | 300 | 300 | 1000 | 1000 |
| Rated power kW | Electric motor 0.37 | Air drive 0.37 | Electric motor 0.37 | Electric motor 0.37 |
| Impeller | 2 folding blades | 2 folding blades | 1 Marine prop. | 2 Marine prop. |
| Max. viscosity (mPas) | 1000 Low shear | 1000 Low shear | 200 High shear | 1000 High shear |
| Agitation during emptying the tank | Yes | Yes | No | No |
| Variable speed | Option | Yes | No | No |
| Start/Stop Button (DOL) | Option | NA | Option | Option |
| Weight (kg/lbs) | 20/44 | 15/33 | 16/35 | 16/35 |
Optimal agitation. Large folding blades (operating volume from 100 to 1,000 liters) provide the full container agitation
Easy to use. Milton Roy Mixing Helimix agitators are lightweight (only 20 kg) and are quickly and easily mounted with hooks through a 140mm IBC opening.
Four models to choose to suit your application. Helimix comes with options in speed, impeller design, and motor drive power so it can take on your mixing challenges.
