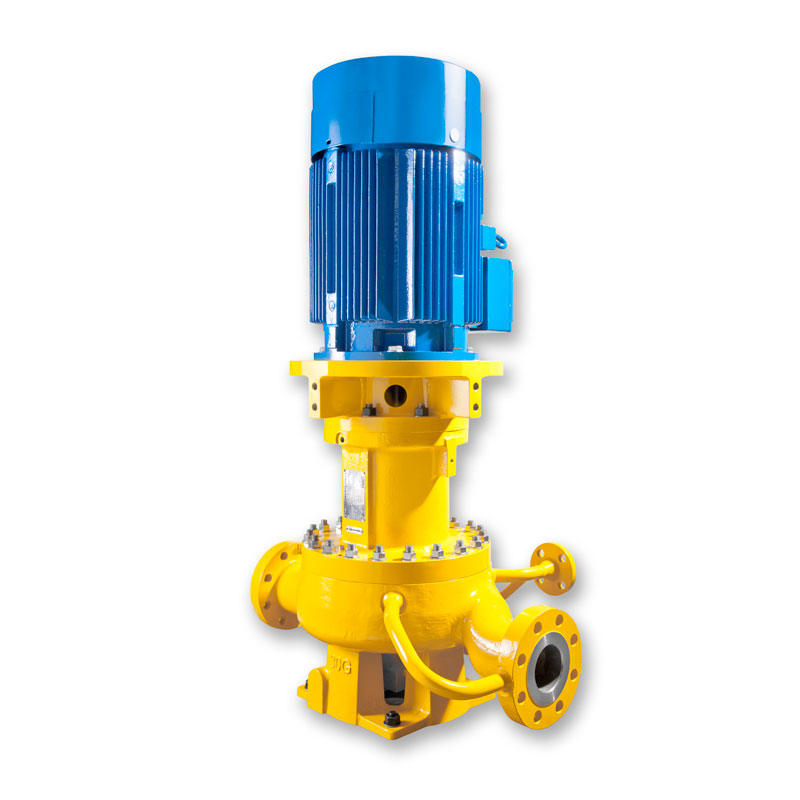

General Service Petroleum Low Flow API 685 Sealless Magnetic Drive Pump
The GSPLF sealless magnetic drive pump from HMD Kontro is a low flow centreline mounted single stage pump with relatively high head capability.
It is a versatile and highly efficient pump for the safe processing and handling of hazardous and valuable hydrocarbons and chemicals. It is typically used in toxic, aggressive, hot, crystallising and high value processes.
With a combination of the proven technologies of Sundyne Barske Wheel hydraulics and HMD Kontro sealless magnetic drive technology, optimised reliability and efficiency is ensured to promote efficient, cost-effective and trouble free plant operation.
The GSPLF is suitable, and the pump of choice for heavy-duty applications in oil & gas, chemical and petrochemical installations and meets the requirements of API 685 as well as all the specifications demanded by these industries. An extra advantage is the flexibility of its diffuser and impeller, which can be easily upgraded should the pump’s duty be changed, without the necessity to replace the pressure casing.
Benefits of the HMD Kontro GSPLF Pump:
- Barske Wheel hydraulics for optimum efficiency in low specific speed (Ns) applications
- Single basic frame size to suit power requirements
- Barske Wheel design reduces radial and axial bearing loads
- Removable diffuser for simple rerating to different process conditions – no costly machining
- Suction tuned inducers for low NPSHa conditions
| Item | Details |
|---|---|
| Flows to | 30 m³/hr (160 gpm) |
| Heads to | 150 m (720 ft) |
| Pressure | 40 bar / 580 psi |
| Temperature Range | -100 to 315°C (-145 to 600°F) |
he GSPLF is suitable, and the pump of choice for heavy-duty applications in oil & gas, chemical and petrochemical installations and meets the requirements of API 685 as well as all the specifications demanded by these industries.
US 60 Hz
| Item | Details |
|---|---|
| Heads to | 720 ft |
| Flows to | 160 gpm |
| Maximum Motor Power | 125 HP |
| Temperature Range | -40 to 600°F |
| Maximum Case Working Pressure | 580 psi |
| Hydrotest Pressure | 870 psi |
| Maximum Viscosity | 200 csT |
| Motor Details | Industry standard |
| Solids Range | Maximum of 5% w/w up to 150 microns |
| Mounting Configuration | Long coupled |
| Dimensional Standards | N/A |
| Number of Available Hydraulics | 14 |
| Available Flanges | ANSI 150lb / 300lb RF |
Metric 50 Hz
| Item | Details |
|---|---|
| Heads to | 150 m |
| Flows to | 30 m3/hr |
| Maximum Motor Power | 90 kW |
| Temperature Range | -40 to 315°C |
| Maximum Case Working Pressure | 40 Bar |
| Hydrotest Pressure | 60 Bar |
| Maximum Viscosity | 200 csT |
| Motor Details | Industry standard |
| Solids Range | Maximum of 5% w/w up to 150 microns |
| Mounting Configuration | Long coupled |
| Dimensional Standards | N/A |
| Number of Available Hydraulics | 14 |
| Available Flanges | ANSI 150lb / 300lb RF |
Our pumps combine cutting-edge technology with over seventy years of expertise and experience to give you complete piece of mind.
Product Security – Magnetic drive sealless pumps are the safest and most robust means for liquid transfer. By eliminating the seal, the primary opportunities for leaks associated with traditional sealed pumps are completely removed.
Efficiency – By improving performance and reducing maintenance calls, sealless magnetic drive pumps can dramatically lower downtime and lost production. In sum, this equates to maximised efficiency that can be seen on your bottom line.
Reliability – Sealless magnetic drive pumps have proven their reliability in even the most severe climate conditions, from the frozen tundra of Siberia to the deserts of the Middle East and the humid climes of Louisiana’s refineries. In fact, there are HMD Kontro pumps that have been in operation for over 30 years and are still running today.
Safety – HMD Kontro sealless magnetic drive pumps are manufactured to conform to international design and safety standards, including ATEX, ISO, API and ANSI requirements. Plus, with no mechanical seals to leak hazardous chemicals, these pumps offer a clear choice for process industry professionals who regularly deal with volatile or high value materials.
Cost-effective – Sealless magnetic drive pumps require less monitoring and maintenance than traditional sealed designs, equating to substantial savings over the life of the pump.
Service – Global service centres keep HMD Kontro sealless magnetic drive pumps operating with peak performance. Standard pumps and parts are available from the factory and in the field.
