HMP 3000 Multi-Stage Integrally Geared Pump

Sundyne integrally gear driven multi-stage pumps are utilized by process engineers to manufacture fertilizer, urea and PTA.

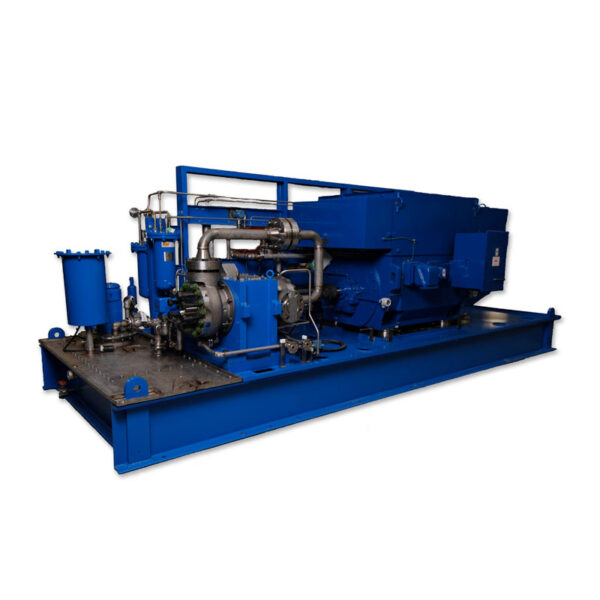

Heavy duty and extremely high pressure, the Sundyne overhung impeller integrally geared multi-stage pump

Sundyne integrally gear driven multi-stage pumps are utilized by process engineers to manufacture fertilizer, urea and PTA. These pumps are able to safely reach extremely high pressures and will run reliably for 5 years without an overhaul. Up to three pump stages are powered by a single gearbox and motor resulting in energy and space savings. Sundyne multi-stage pumps generally utilize only 25% of the space and require much less maintenance than between bearing pumps and generate extremely high pressures.

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency. An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.

• Flows to 440 gpm (100 m³/hr)
• Heads to 10,000 ft (3,050 m)
• Suction Pressure 425 psi (30 bar)
• Temperature Range -200 to 500°F (-130 to 260°C)

Applications

• Fertilizer manufacturing
• PTA – Purified Terephthalic Acid
• Urea processing
