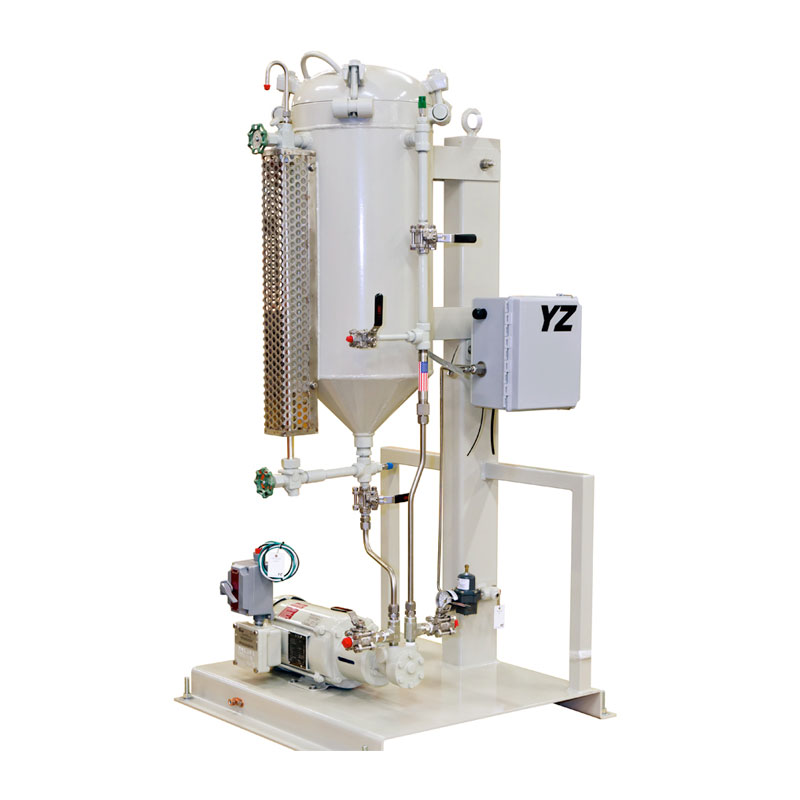

Crude Oil Sampling Systems
Simple and reliable family of crude oil sampling systems.
YZ’s crude oil sampling systems are designed to capture and combine thousands of individual samples into a representative, composite sample of single-phase liquids in a flowing pipeline. Operation of the system centers on a sample pump and electric control system. All equipment, except for the pump, are skid mounted. The systems can operate in proportional-to-flow or time-based injection modes.
With 60 years of experience, YZ offers a standard, simple and reliable family of crude oil sampling systems. Each system is manufactured with quality and precision, and field proven. The goal of the entire design is to deliver a representative sample month after month, year after year.
Specifications
- Maximum output – 25.3 liters/day (6.8 gallons/day)
- Maximum operating pressure – 124 bar (1,800 psig)
- Pump displacement – .25 to 1.8 cc/stroke
- Operating temperature range – 17 degrees C to 60 degrees C (0 degrees F to 140 degrees F)
- Power supply – 120 vac – 220 vac
- Actuation source – hydraulic or pneumatic
- Flow Signal – dry contact of voltage
Options
- Direct or remote mounted sample pumps
- Sample accumulator capacities: 5, 10, 20, 30 gallon
- Actuation: pneumatic or hydraulic
- Severe service elastomers
Features
- Factory assembled
- Single or multi-vessel accumulators
- Sample pump with integral balance feature - direct or remote mounted
- Skid or cabinet mounted
- Sample Accumulator with spray bar, epoxy lined
- Static mixer
- Proportional to flow operation
- Control options - variety
