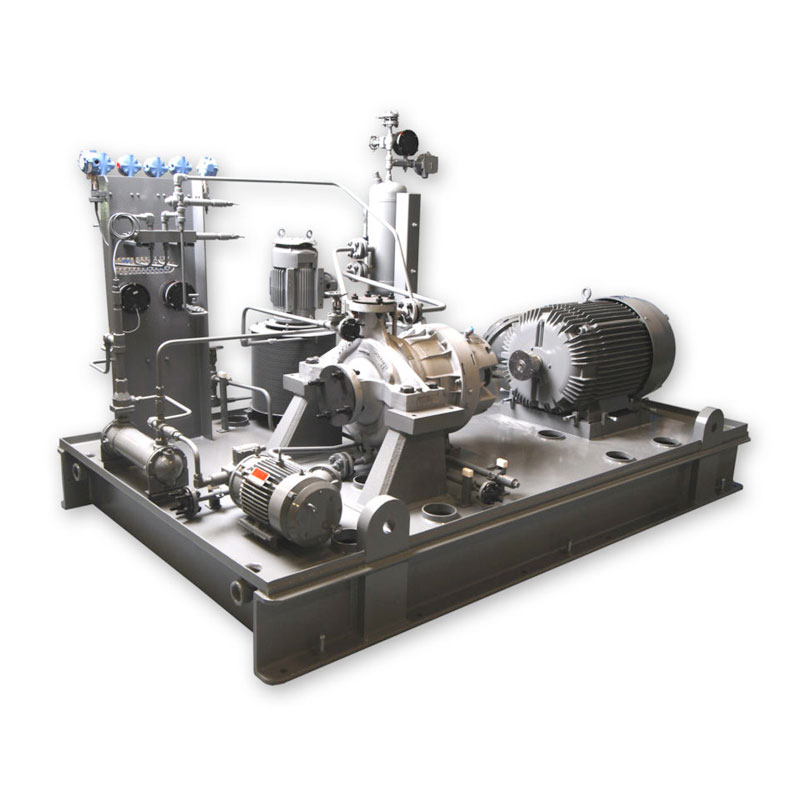

BMP 338 OH6 Integrally Geared Pump

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency.

Safe, reliable and economical the Sundyne API 610, OH6, Integrally geared pump

Sundyne API 610, OH6 Integrally Gear Driven Pumps are engineered for critical high-head, low-flow, heavy-duty services required by process and rotating equipment engineers within the hydrocarbon, chemical, petrochemical, power generation, gas production, and specialty processing industries. Sundyne pumps are renowned for high suction pressure and a wide range of operating temperatures.

Unlike conventional multi-stage pumps, Sundyne computer tailored hydraulics place the B.E.P. (best efficiency point) at the rated point resulting in optimum efficiency. An added benefit is reduced end-of-curve horsepower, allowing for smaller driver sizes resulting in energy savings.

• Flows to 1,100 gpm (73 m³/hr)
• Heads to 2,800 ft (1,348 m)
• Suction Pressure 500 psi (71 kg/cm²)
• Temperature Range -200 to 650°F (-130 to 340°C)

Multi-stage performance in a single stage pump

The integrally geared line of Sundyne pumps is specifically designed to save valuable space in refineries, NGL production, petrochemical and chemical plants.

Applications

• Feed pumps
• Booster pumps
• Bottoms pumps
• Wash water pumps
• Reflux pumps
• Condensate pumps
