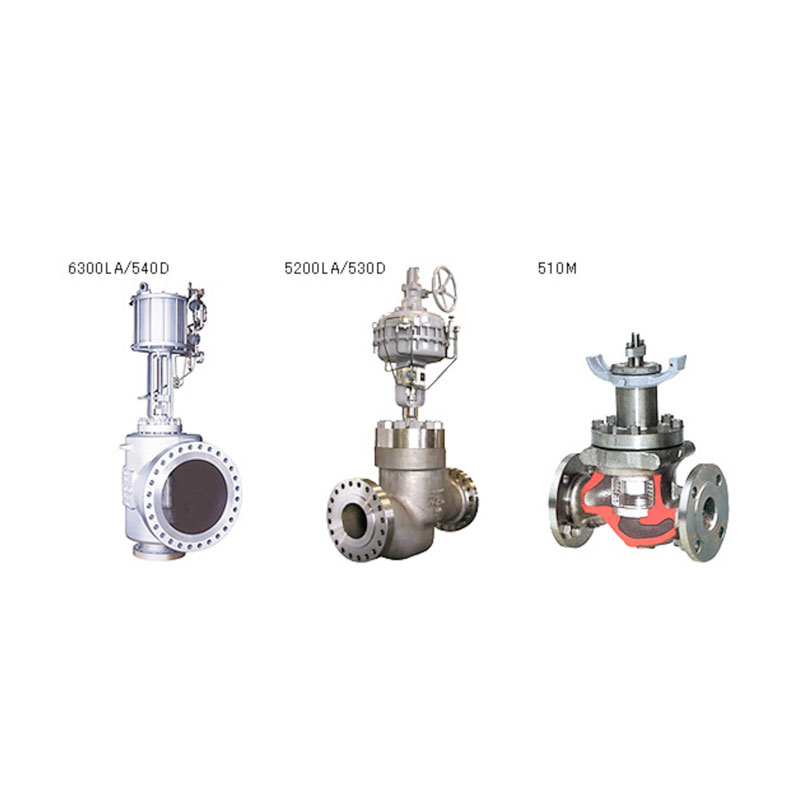

500M VeCTor M Trim
In severe services of high temperature and high differential pres-sure, KOSO’s multi-stage trim (Pat.)
This Series is multi-ad-vantageous in that its improved performance and durabitity allows maintenance cost reduction and system simplification. Since such ancillaries as diffusers and silencers are not necessary, equipment cost can be reduced too. From 500M, 500D and 500J, depending on the fluid condition, most suitable model can be selected comparing functions and prices.
Specifications
| Col1 | Col2 | Col3 | Col4 | ||
|---|---|---|---|---|---|
| Body type Body Styles | 500M Globe / Angle | 500D Globe / Angle | 500J Globe / Angle | ||
| Body size | 1" to 36"(900A) | 1" to 36"(900A) | 1" to 18"(450A) | ||
| Body rating | ANSI Class 150 to 4500, JIS10K to 63K | ANSI Class 150 to 4500, JIS10K to 63K | ANSI Class 150 to 2500, JIS 10K to 63K | ||
| Fluid temperature | -196 to +565° (-320F to +1050F) | #colspan# | #colspan# | ||
| Connections | Flanged (RF, RTJ), Butt Weld, Socket Weld, Integral Flanges (RF, RTJ) | #colspan# | #colspan# | ||
| Body materials | SCPH2/WCB, SCPH21/WC6, SCPL1/LCB, SCS13A/CF8, SCS14A/CF8M, A105, F11, F22, etc... | #colspan# | #colspan# | ||
| Trim materials | SUS410/410SS, SUS630/SCS24, SUS316/SCS14A, INCONEL, etc... | #colspan# | #colspan# | ||
| Rangeability | 50:1 to 20:1 | #colspan# | #colspan# | ||
| Flow characteristics | Linear , Modified Linear , Modified Eq% | #colspan# | #colspan# | ||
| Leakage Metal seat | Rated ANSI Class IV, V or MSS-SP-61 | #colspan# | #colspan# | ||
| Leakage Soft seat | Bubbletight ANSI Class VI | #colspan# | #colspan# | ||
| Trim Levels | Up to Level 24 | Up to Level 40 | Up to Level 8 | ||
| Actuator combination | 5200LA: Pneumatic Diaphragm Actuator 6300LA: Pneumatic Cylinder Actuator 3500LB,3600LB: Solid State Electronic Actuator 3800LA: Microprocessor REXA Actuator | #colspan# | #colspan# | ||
